Surface mount transistor output Solid State Relay (SSR) with a 1-channel, SPST configuration. Features a 350mA load current capability at up to 80V output voltage. Operates with a 50mA DC input current and offers a low 1.2Ω maximum on-state resistance. Packaged in a compact SOP case with gull wing termination, suitable for tape and reel packaging. This RoHS compliant component boasts a 0.25ms turn-on and 0.08ms turn-off delay time.
PackageSOP
Capacitance1.5pF
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic AQY225R1SX technical specifications.
General
| Capacitance | 1.5pF |
| Package/Case | SOP |
| Height | 2mm |
| Input Current | 50mA |
| Input Type | DC |
| Lead Free | Lead Free |
| Length | 4.4mm |
| Load Current | 350mA |
| Max Input Current | 50mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 350mA |
| Max Output Voltage | 80V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| On-state Resistance-Max | 1.2R |
| Output Voltage | 80V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | PhotoMOS™ AQY |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| Turn-Off Delay Time | 0.08ms |
| Turn-On Delay Time | 0.25ms |
| Width | 4.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic AQY225R1SX Datasheet
Download the complete datasheet for Panasonic AQY225R1SX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

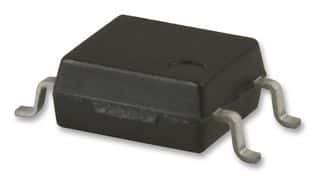

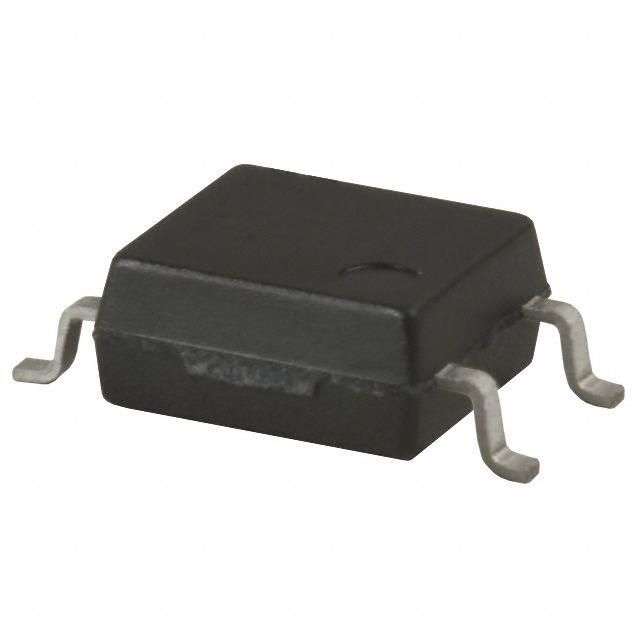

Product Images
