AC/DC output solid-state relay featuring a 1.5kV isolation voltage. This surface-mount component offers a DC input current of 50mA and a load current of 120mA at up to 80V AC/DC output. Operating within a -40°C to 85°C temperature range, it has a maximum on-state resistance of 15 Ohms. The relay is supplied in a 4-pin SSOP package on tape and reel, with RoHS compliance and lead-free termination.
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic AQY225R2VY technical specifications.
General
Package/Case
SSOP
Height
1.8mm
Input Current
50mA
Input Type
DC
Isolation Voltage
1.5kV
Isolation Voltage-Max
1.5kV
Lead Free
Lead Free
Length
4.45mm
Load Current
120mA
Max Input Current
50mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
120mA
Max Output Voltage
80V
Mount
Surface Mount
On-state Resistance-Max
15R
Output Current
120mA
Output Voltage
80V
Package Quantity
3500
Packaging
Tape and Reel
Radiation Hardening
No
Relay Type
Relay
RoHS Compliant
Yes
Series
PhotoMOS™ AQY
Termination
SMD/SMT
Throw Configuration
SPST
Width
2.65mm
Compliance
RoHS
Compliant
Datasheet
Panasonic AQY225R2VY Datasheet
Download the complete datasheet for Panasonic AQY225R2VY to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

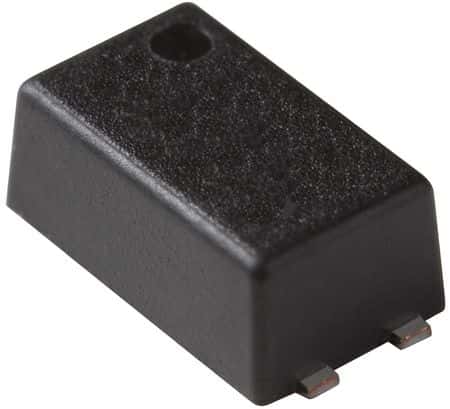

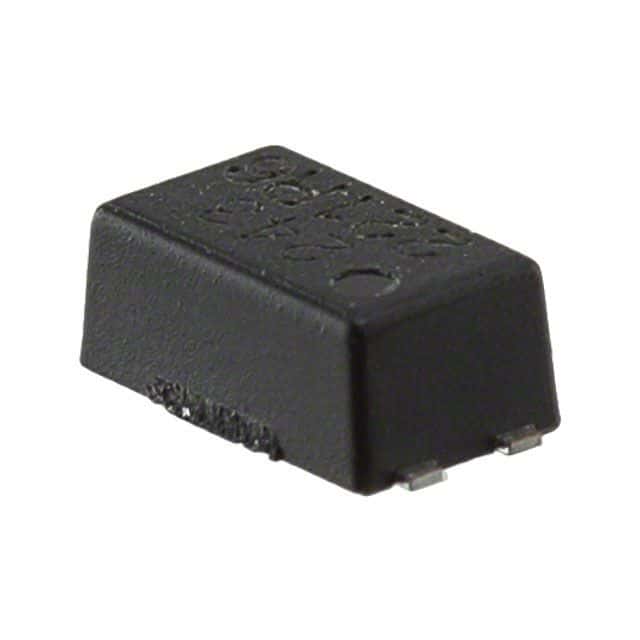

Product Images
