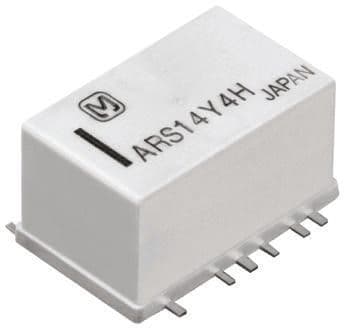

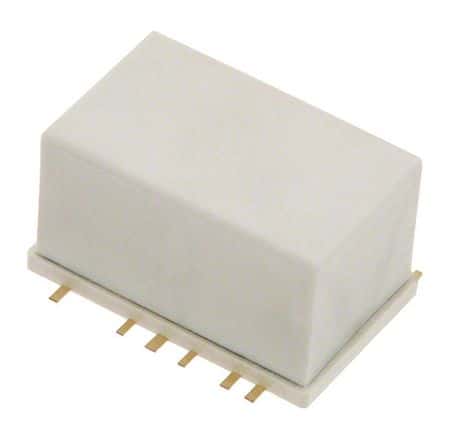

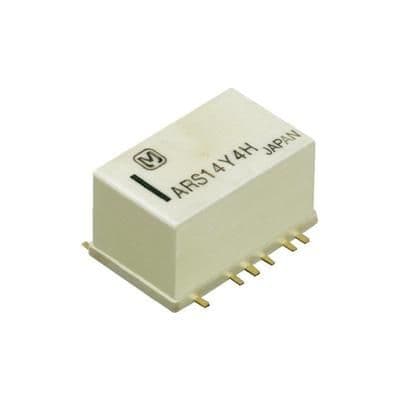

High-frequency RF relay featuring a 1 Form C, SPDT configuration for signal switching up to 3000MHz. This surface-mount component offers a 0.5A contact rating at 30VDC, with gold-plated contacts for reliable performance. It operates with a 4.5VDC coil voltage and 200mW coil power, exhibiting a 10ms operate time and 6ms release time. Designed for demanding applications, it boasts a 1W RF input power handling capability and a 50-ohm impedance.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic ARS14A4H datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic ARS14A4H technical specifications.
| Coil Current | 44.4mA |
| Coil Power | 200mW |
| Coil Resistance | 101.3R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 4.5V |
| Contact Current Rating | 500mA |
| Contact Material | Gold |
| Contact Type | 1 change-over |
| Depth | 11.2mm |
| Height | 8mm |
| Impedance | 50R |
| Insertion Loss | 0.4dB |
| Insertion Loss | 0.2dB |
| Length | 14mm |
| Life (Hours) | 1000000Hour |
| Max Current Rating | 500mA |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 30V |
| Mount | Surface Mount, PCB |
| Operate Time | 10ms |
| Package Quantity | 40 |
| Packaging | Rail/Tube |
| Power Consumption | 200mW |
| Release Time | 6ms |
| RoHS Compliant | Yes |
| Series | ARS |
| Switching Current | 500mA |
| Switching Voltage | 30V |
| Termination | Gull Wing |
| Throw Configuration | SPDT |
| Width | 8.6mm |
| RoHS | Compliant |
