3 GHz microwave relay, SPDT configuration, featuring a 500mA contact current rating with gold contacts. Operates at 4.5V DC coil voltage with 200mW power consumption and 44.4mA coil current. Offers 1.4 VSWR and 0.35dB insertion loss, with a 50 Ohm impedance. Miniature size with through-hole PCB mounting, 1 million hour life, and RoHS compliance.
Frequency3GHz
MountingThrough Hole, PCB
Power200mW
Quick Jump:
Technical Specifications
Panasonic ARS154H technical specifications.
General
| Coil Current | 44.4mA |
| Coil Power | 200mW |
| Coil Resistance | 101.3R |
| Coil Type | Latching, Single Coil |
| Coil Voltage (DC) | 4.5V |
| Contact Current Rating | 500mA |
| Contact Material | Gold |
| Depth | 8.6mm |
| Frequency | 3GHz |
| Height | 7.2mm |
| Impedance | 50R |
| Insertion Loss | 0.35dB |
| Length | 14mm |
| Life (Hours) | 1000000Hour |
| Max Current Rating | 500mA |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 30V |
| Mount | Through Hole, PCB |
| Operate Time | 10ms |
| Package Quantity | 50 |
| Packaging | Bulk |
| Power Consumption | 200mW |
| Release Time | 10ms |
| RoHS Compliant | Yes |
| Series | ARS |
| Switching Current | 500mA |
| Switching Voltage | 30V |
| Termination | PC Pin |
| Throw Configuration | SPDT |
| VSWR | 1.4 |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ARS154H Datasheet
Download the complete datasheet for Panasonic ARS154H to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

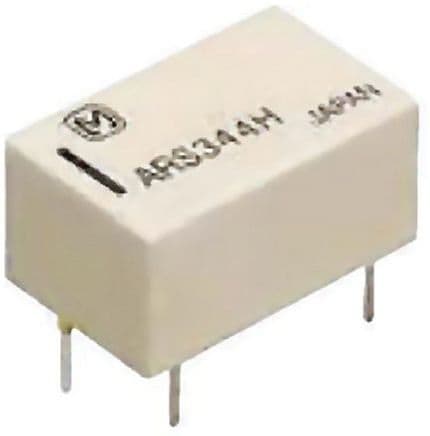

Product Images
