SPDT RF relay featuring a 12VDC latching dual coil with 33.3mA current and 400mW power consumption. Offers a 0.5A contact rating at 30VDC, suitable for frequencies up to 3000MHz with 1W RF input power. Designed for through-hole mounting with PC pin termination, this relay boasts a 1,000,000-hour operational life and operates within a -40°C to 70°C temperature range. Key specifications include 50-ohm impedance, 0.35dB insertion loss, and 1.4 VSWR.
Frequency3GHz
MountingThrough Hole, PCB
Power400mW
Quick Jump:
Technical Specifications
Panasonic ARS1612 technical specifications.
General
| Coil Current | 33.3mA |
| Coil Power | 400mW |
| Coil Resistance | 360R |
| Coil Type | Latching, Dual Coil |
| Coil Voltage (DC) | 12V |
| Contact Current Rating | 500mA |
| Contact Material | Gold |
| Contact Type | 1 change-over |
| Depth | 8.6mm |
| Frequency | 3GHz |
| Height | 7.2mm |
| Impedance | 50R |
| Insertion Loss | 0.35dB |
| Length | 14mm |
| Life (Hours) | 1000000Hour |
| Max Current Rating | 500mA |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 30V |
| Mount | Through Hole, PCB |
| Operate Time | 10ms |
| Package Quantity | 50 |
| Packaging | Tray |
| Power Consumption | 400mW |
| Reach SVHC Compliant | Unknown |
| Release Time | 10ms |
| RoHS Compliant | Yes |
| Series | ARS |
| Switching Current | 500mA |
| Switching Voltage | 30V |
| Termination | PC Pin |
| Throw Configuration | SPDT |
| VSWR | 1.4 |
| Width | 8.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ARS1612 Datasheet
Download the complete datasheet for Panasonic ARS1612 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

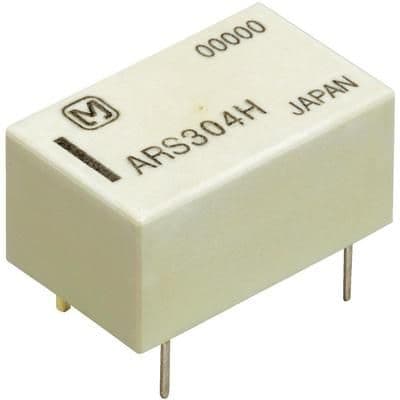

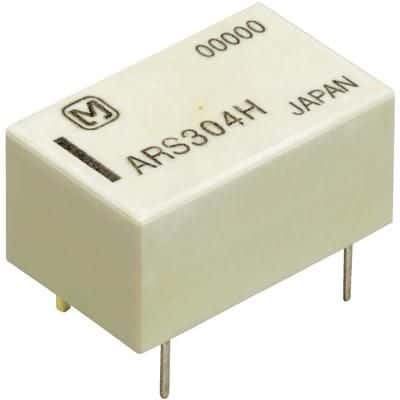

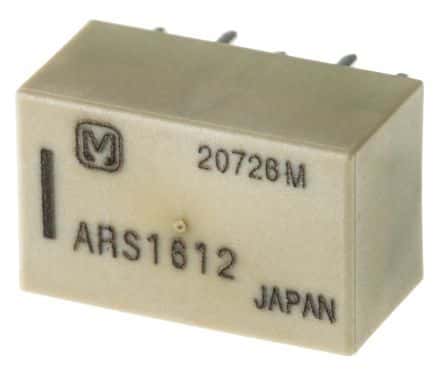

Product Images
