Lithium poly-carbonmonoflouride primary battery with a 3V output voltage and 120mAh capacity. Features a 16mm diameter and 3.2mm height, designed for surface mount (SMD/SMT) applications. Offers a wide operating temperature range from -30°C to 80°C and is RoHS compliant. Each package contains 30 units.
PackageSMD/SMT
Storage120mAh
Voltage Rating3V
Quick Jump:
Technical Specifications
Panasonic BR-1632A/FAN technical specifications.
General
| Battery Type | PRIMARY |
| Capacity | 120mAh |
| Package/Case | SMD/SMT |
| Depth | 16mm |
| Height | 3.2mm |
| Lead Free | Lead Free |
| Length | 16mm |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -30°C |
| Number of Cells | 1 |
| Output Voltage | 3V |
| Outside Diameter | 16mm |
| Package Quantity | 30 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | BR1632 |
| Termination | SMD/SMT |
| Voltage Rating | 3V |
| Weight | 1.5g |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic BR-1632A/FAN Datasheet
Download the complete datasheet for Panasonic BR-1632A/FAN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

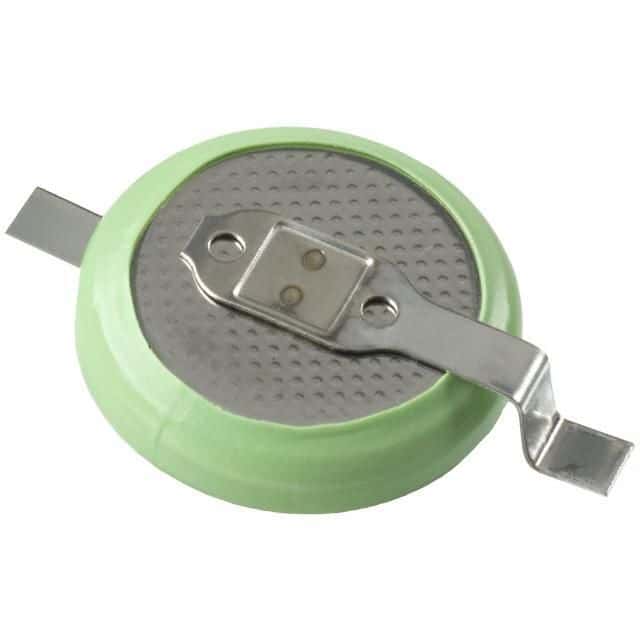

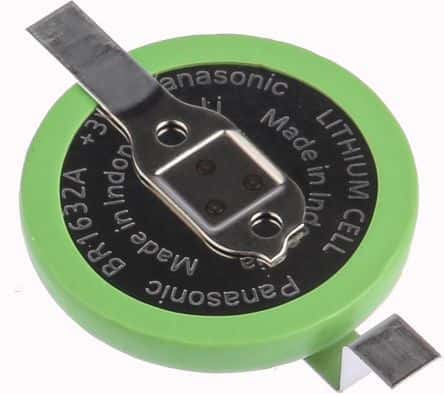

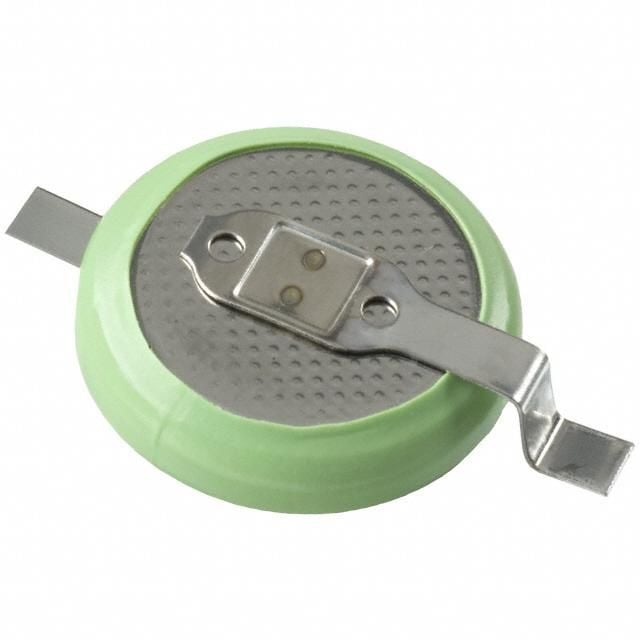

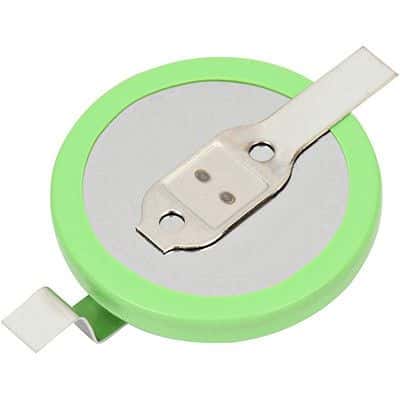

Product Images
