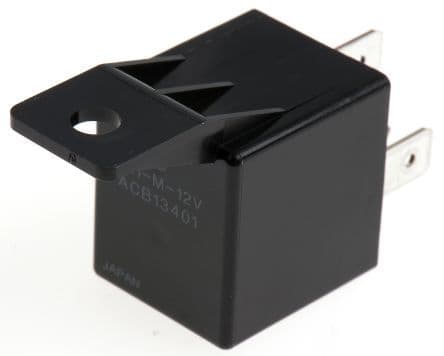

General purpose electromechanical relay featuring a 12VDC coil with 117mA current draw and 1.4W power consumption. This SPDT relay offers a 40A contact current rating at 12VDC, with silver-cadmium contact material. Designed for panel or chassis mounting with quick connect termination, it operates within a -40°C to 85°C temperature range and boasts a 15ms operate and release time. The relay is RoHS compliant and suitable for DC input and output applications.
Current Rating40A
MountingChassis Mount, Panel, Brackets
Power1.4W
Quick Jump:
Technical Specifications
Panasonic CB1-M-12V technical specifications.
General
Coil Current
117mA
Coil Power
1.4W
Coil Resistance
103R
Coil Type
Non-Latching
Coil Voltage (DC)
12V
Contact Current Rating
40A
Contact Material
Silver, Cadmium
Current Rating
40A
Depth
22mm
Height
25mm
Lead Free
Lead Free
Length
30mm
Life (Hours)
10Hour
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (DC)
14V
Mount
Chassis Mount, Panel, Brackets
Operate Time
15ms
Package Quantity
50
Packaging
Bulk
Power Consumption
1.4W
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Release Time
15ms
RoHS Compliant
Yes
Series
CB
Termination
Quick Connect
Throw Configuration
SPDT
DC Rated Voltage
14V
Compliance
RoHS
Compliant
Datasheet
Panasonic CB1-M-12V Datasheet
Download the complete datasheet for Panasonic CB1-M-12V to view detailed technical specifications.
