SPDT general purpose electromechanical relay featuring a 12VDC coil with 125mA coil current and 1.5W coil power. Offers a 20A contact current rating with a 14VDC contact voltage rating, and a 35A maximum contact current rating. Designed for socket mounting with quick connect termination, this relay operates within a -40°C to 85°C temperature range and boasts a 10ms operate and release time. RoHS compliant and lead-free.
Current Rating20A
MountingSocketable, Socket, PCB, Plug-In
Power1.5W
Quick Jump:
Technical Specifications
Panasonic CM1-12V technical specifications.
General
| Coil Current | 125mA |
| Coil Power | 1.5W |
| Coil Resistance | 96R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 12V |
| Contact Current Rating | 35A |
| Contact Material | Silver, Cadmium |
| Current Rating | 20A |
| Depth | 15mm |
| Height | 22mm |
| Lead Free | Lead Free |
| Length | 20mm |
| Life (Hours) | 50000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 14V |
| Mount | Socketable, Socket, PCB, Plug-In |
| Operate Time | 10ms |
| Package Quantity | 50 |
| Packaging | Bulk |
| Power Consumption | 1.5W |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Release Time | 10ms |
| RoHS Compliant | Yes |
| Series | CM |
| Termination | Quick Connect |
| Throw Configuration | SPDT |
| DC Rated Voltage | 14V |
| Weight | 20g |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic CM1-12V Datasheet
Download the complete datasheet for Panasonic CM1-12V to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

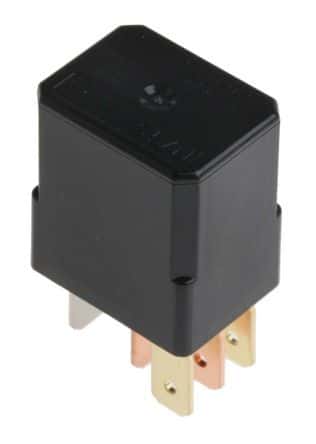

Product Images
