Primary lithium coin cell battery, 3V output voltage, 1Ah capacity. Features lithium chemistry and a 24.5mm diameter with a 0.3-inch height. Operates within a temperature range of -30°C to 60°C. RoHS compliant, ideal for surface mount applications.
Storage1ah
Voltage Rating3V
Quick Jump:
Technical Specifications
Panasonic CR2477 technical specifications.
General
| Battery Chemistry | LITHIUM |
| Capacity | 1ah |
| Chemistry/Technology | Lithium |
| Diameter | 24.5mm |
| Height | 0.3inch |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -30°C |
| Output Voltage | 3V |
| Outside Diameter | 24.5mm |
| Package Quantity | 100 |
| RoHS Compliant | Yes |
| Series | CR2477 |
| Voltage Rating | 3V |
| Weight | 0.37oz |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic CR2477 Datasheet
Download the complete datasheet for Panasonic CR2477 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

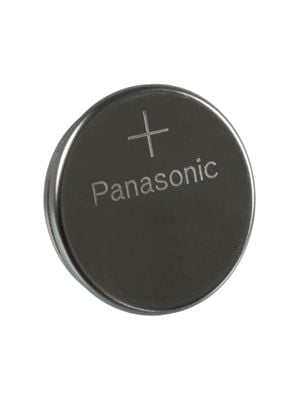

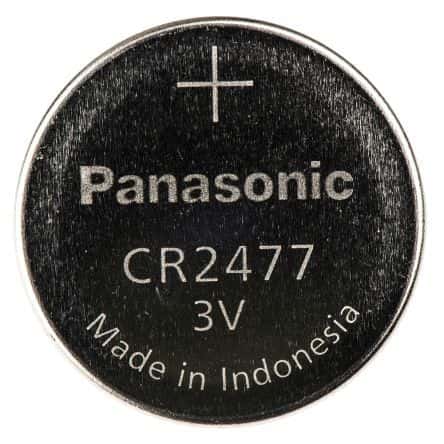

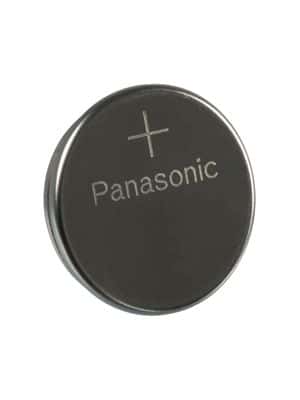

Product Images
