Triangulation optical sensor with a sensing range of 20 to 300 mm. Features a PNP open collector output configuration and a fast 1ms response time. Operates within a 12V to 24V DC supply voltage range and is rated IP67 for robust environmental protection. The component has a width of 11.2mm and a height of 31mm, with cable termination for mounting. Operating temperature range is -25°C to 55°C.
Package300
MountingCable
Quick Jump:
Technical Specifications
Panasonic CX-442-P technical specifications.
General
| Package/Case | 300 |
| Height | 31mm |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage (DC) | 24V |
| Min Supply Voltage (DC) | 12V |
| Max Voltage Rating (DC) | 24V |
| Mount | Cable |
| Output Configuration | PNP - Open Collector |
| Output Type | PNP |
| Ratings | IP67 |
| Reach SVHC Compliant | No |
| Response Time | 1ms |
| Series | CX-400 |
| Termination | Cable |
| Width | 11.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic CX-442-P Datasheet
Download the complete datasheet for Panasonic CX-442-P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

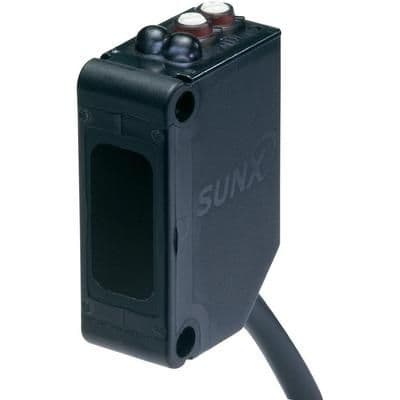

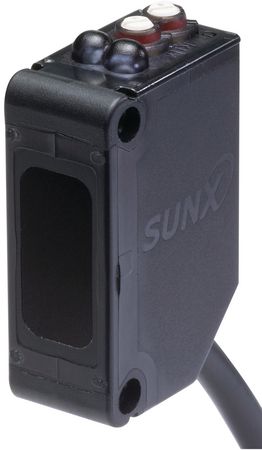

Product Images
