Technical Specifications
Panasonic DA2JF8100L technical specifications.
General
| Average Rectified Current | 200mA |
| Forward Current | 200mA |
| Height | 0.7mm |
| Lead Free | Lead Free |
| Length | 1.7mm |
| Max Forward Surge Current (Ifsm) | 1A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Repetitive Reverse Voltage (Vrrm) | 800V |
| Max Reverse Current | 10uA |
| Max Reverse Voltage (DC) | 800V |
| Max Surge Current | 1A |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 1A |
| Reach SVHC Compliant | No |
| Reverse Recovery Time | 45ns |
| Reverse Voltage | 800V |
| RoHS Compliant | Yes |
| Width | 1.25mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic DA2JF8100L Datasheet
Download the complete datasheet for Panasonic DA2JF8100L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

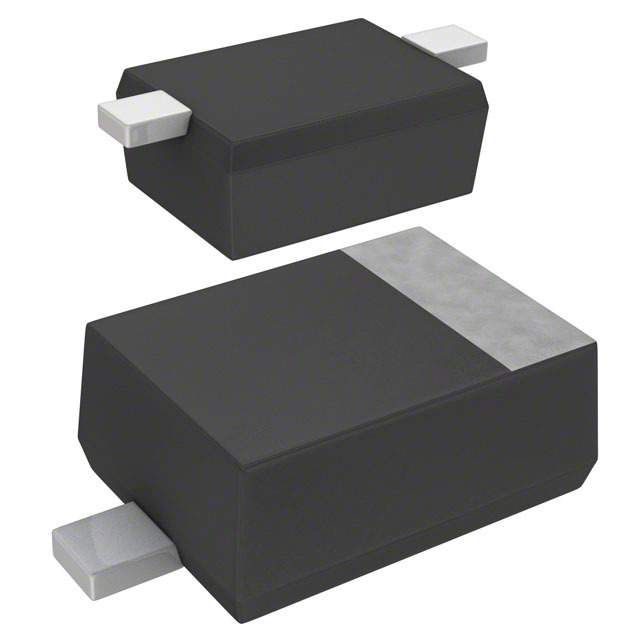

Product Images
