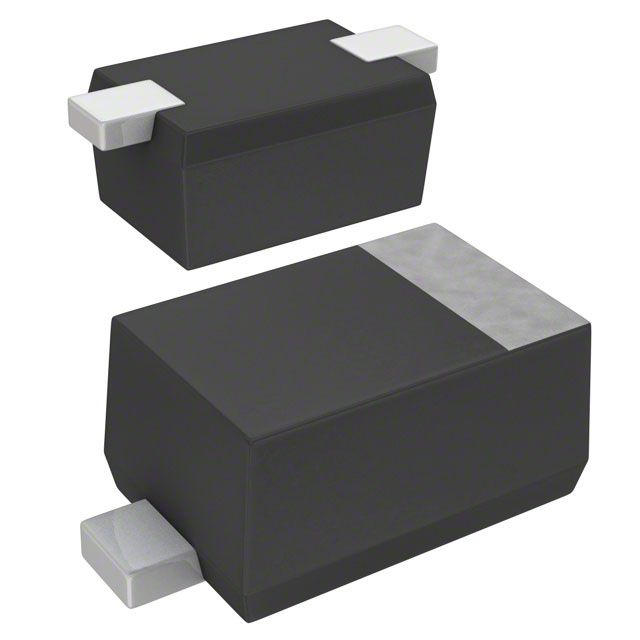

The DB2S31000L is a surface mount diode with a maximum operating temperature of 125°C and a minimum operating temperature of -55°C. It has a maximum reverse voltage of 30V and a maximum forward current of 200mA. The diode's reverse recovery time is 1.6ns and it is RoHS compliant. The device is packaged in a SC-79 package with a width of 0.8mm, a length of 1.2mm, and a height of 0.6mm.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic DB2S31000L datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic DB2S31000L technical specifications.
| Average Rectified Current | 200mA |
| Forward Current | 200mA |
| Height | 0.6mm |
| Length | 1.2mm |
| Max Forward Surge Current (Ifsm) | 1A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Repetitive Reverse Voltage (Vrrm) | 30V |
| Max Reverse Current | 200uA |
| Max Reverse Leakage Current | 200uA |
| Max Reverse Voltage (DC) | 30V |
| Max Surge Current | 1A |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 1A |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Recovery Time | 1.6ns |
| RoHS Compliant | Yes |
| Width | 0.8mm |
| RoHS | Compliant |
