DPST general purpose signal relay with a 24VDC dual coil latching coil type. Features an 8A contact current rating with silver/gold contact material, suitable for power applications. Operates within a -40°C to 65°C temperature range, offering 50 million electrical operations. Through-hole mounting with PC pin termination, rated for 380VAC and 125VDC. UL, CSA, VDE, and TUV approved, RoHS compliant.
Current Rating8A
MountingThrough Hole, PCB
Power200mW
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Panasonic DK1A1B-L2-24V datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Panasonic DK1A1B-L2-24V technical specifications.
General
| Application(s) | POWER |
| Approvals | UL, CSA, VDE, TUV |
| Coil Current | 8.3mA |
| Coil Power | 200mW |
| Coil Resistance | 2.88kR |
| Coil Type | Latching, Dual Coil |
| Coil Voltage (DC) | 24V |
| Contact Current Rating | 8A |
| Contact Material | Silver, Gold |
| Current Rating | 8A |
| Depth | 15mm |
| Dropout Voltage | 1kV |
| Height | 10mm |
| Lead Free | Lead Free |
| Length | 20mm |
| Life (Hours) | 50000000Hour |
| Max Current Rating | 8A |
| Max Operating Temperature | 65°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 380V |
| Max Voltage Rating (DC) | 125V |
| Mount | Through Hole, PCB |
| Operate Time | 10ms |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Consumption | 200mW |
| Reach SVHC Compliant | Unknown |
| Relay Type | General Purpose |
| Release Time | 8ms |
| RoHS Compliant | Yes |
| Series | DK |
| Switching Current | 8A |
| Termination | PC Pin |
| Throw Configuration | DPST, SPST |
| Voltage Rating (AC) | 380V |
| Weight | 6g |
| Width | 20mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic DK1A1B-L2-24V Datasheet
Download the complete datasheet for Panasonic DK1A1B-L2-24V to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

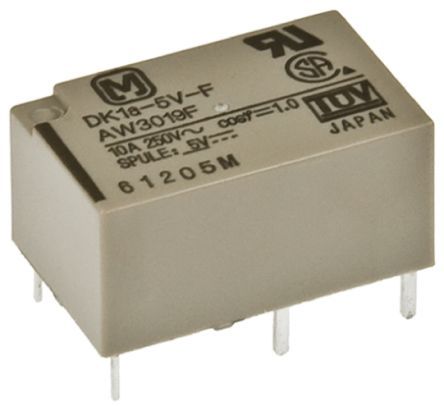

Product Images
