Technical Specifications
Panasonic DP-101A-E-P technical specifications.
General
Accuracy
1%
Package/Case
Module
Height
30mm
Lead Length
2m
Material
PBT
Max Operating Temperature
50°C
Min Operating Temperature
-10°C
Max Pressure
72.52PSI
Operating Pressure
14.5PSI
Output Type
PNP - Open Collector, Analog Current/Voltage, RELAY
Port Style
Threaded
Pressure Type
Vented Gauge
Primary Type
PRESSURE SENSOR
Ratings
IP40
Reach SVHC Compliant
Unknown
Response Time
2.5ms
RoHS Compliant
No
Series
DP-100
Termination
Connector
DC Rated Voltage
24V
Width
30mm
Compliance
RoHS
Not Compliant
Datasheet
Panasonic DP-101A-E-P Datasheet
Download the complete datasheet for Panasonic DP-101A-E-P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

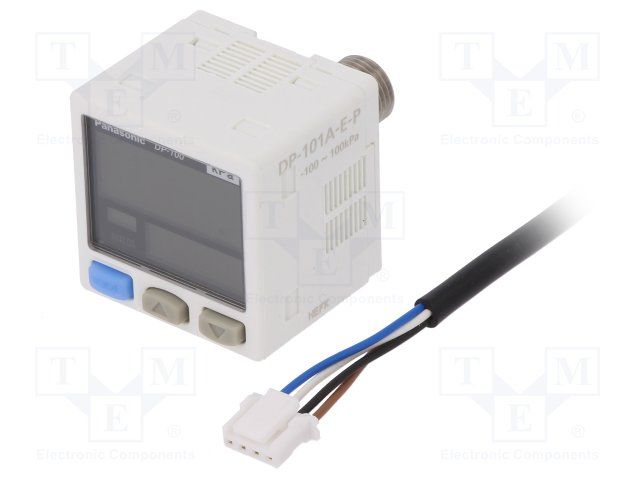

Product Images
