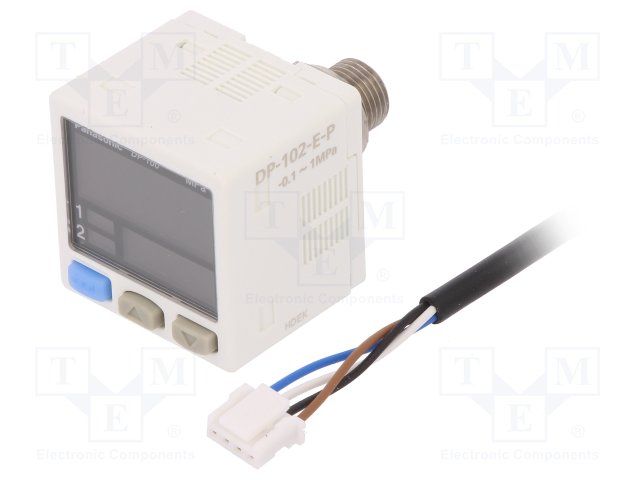

This pressure sensor module features a PBT material construction and threaded port style, designed for general environmental sensing. It operates within a -10°C to 50°C temperature range and accepts a supply voltage of 12V to 24V DC. The sensor offers 1% accuracy, a maximum operating pressure of 217.56 PSI, and a rated operating pressure of 145.04 PSI. Output is provided via a PNP - Open Collector, RELAY type with a fast 2.5ms response time. Mounting is achieved through a screw mechanism, and the unit includes a 2m lead with connector termination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic DP-102-E-P datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic DP-102-E-P technical specifications.
| Accuracy | 1% |
| Package/Case | Module |
| Height | 30mm |
| Lead Free | Lead Free |
| Lead Length | 2m |
| Material | PBT |
| Max Operating Temperature | 50°C |
| Min Operating Temperature | -10°C |
| Max Pressure | 217.56PSI |
| Max Supply Voltage | 24V |
| Min Supply Voltage | 12V |
| Mount | Screw |
| Operating Pressure | 145.04PSI |
| Output Type | PNP - Open Collector, RELAY |
| Port Style | Threaded |
| Pressure Type | Vented Gauge |
| Primary Type | PRESSURE SENSOR |
| Ratings | IP40 |
| Reach SVHC Compliant | No |
| Response Time | 2.5ms |
| RoHS Compliant | No |
| Series | DP-100 |
| Termination | Connector |
| DC Rated Voltage | 24V |
| Width | 30mm |
| RoHS | Not Compliant |
