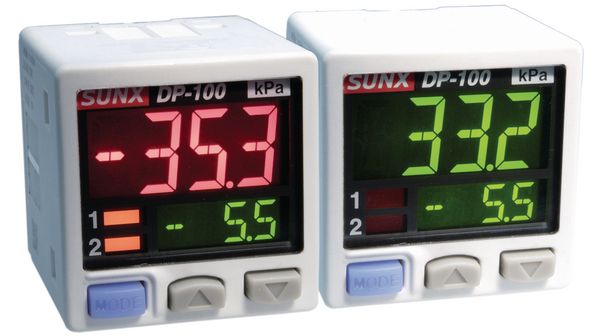

Strain gauge pressure sensor with a PBT module package, measuring 30mm in height and width. Features a 145.04 PSI operating pressure, with a maximum of 217.56 PSI, and a vented gauge pressure type. Offers 1% accuracy, a 2.5ms response time, and operates within a -10°C to 50°C temperature range. Power requirements are 12V to 24V DC, with PNP - Open Collector, Analog Current/Voltage, and RELAY output types. Threaded port style and connector termination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic DP-112-E-P-J datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic DP-112-E-P-J technical specifications.
| Accuracy | 1% |
| Package/Case | Module |
| Height | 30mm |
| Lead Free | Lead Free |
| Material | PBT |
| Max Operating Temperature | 50°C |
| Min Operating Temperature | -10°C |
| Max Pressure | 217.56PSI |
| Max Supply Voltage | 24V |
| Min Supply Voltage | 12V |
| Number of Outputs | 2 |
| Operating Pressure | 145.04PSI |
| Output Type | PNP - Open Collector, Analog Current/Voltage, RELAY |
| Port Style | Threaded |
| Pressure Type | Vented Gauge |
| Ratings | IP40 |
| Reach SVHC Compliant | Unknown |
| Response Time | 2.5ms |
| RoHS Compliant | No |
| Series | DP-100 |
| Termination | Connector |
| DC Rated Voltage | 24V |
| Width | 30mm |
| RoHS | Not Compliant |
