Technical Specifications
Panasonic DP-112A-E-P-J technical specifications.
General
Accuracy
1%
Package/Case
Module
Material
PBT
Max Operating Temperature
50°C
Min Operating Temperature
-10°C
Max Pressure
217.56PSI
Max Supply Voltage
24V
Min Supply Voltage
12V
Number of Outputs
2
Operating Pressure
145.04PSI
Output Type
PNP - Open Collector, Analog Current/Voltage, RELAY
Output Voltage
5V
Port Style
Threaded
Pressure Type
Vented Gauge
Primary Type
PRESSURE SENSOR
Ratings
IP40
Response Time
2.5ms
RoHS Compliant
No
Series
DP-100
Termination
Connector
Width
30mm
Compliance
RoHS
Not Compliant
Datasheet
Panasonic DP-112A-E-P-J Datasheet
Download the complete datasheet for Panasonic DP-112A-E-P-J to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

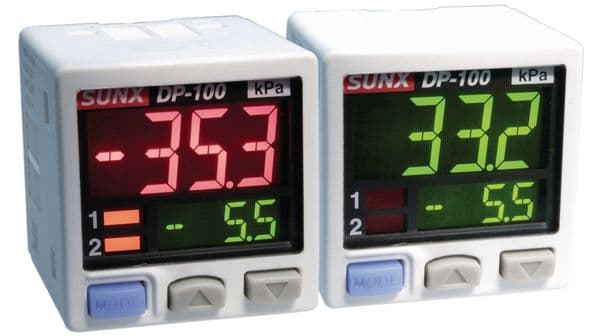

Product Images
