DPDT signal relay with a 6VDC coil voltage and 2A contact current rating. Features gold/silver contact material, 250VAC/220VDC voltage ratings, and a 200mW coil power. Through-hole mounting with PC pin termination. Operates within a -40°C to 70°C temperature range.
PackageDIP
MountingThrough Hole
Power200mW
Quick Jump:
Technical Specifications
Panasonic DS2E-S-DC6V technical specifications.
General
Package/Case
DIP
Coil Current
33.3mA
Coil Power
200mW
Coil Resistance
180R
Coil Type
Non-Latching
Coil Voltage (DC)
6V
Contact Current Rating
2A
Contact Material
Gold, Silver
Depth
9.9mm
Height
9.9mm
Lead Free
Lead Free
Length
20mm
Max Current Rating
3A
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
220V
Mount
Through Hole
Operate Time
10ms
Package Quantity
50
Packaging
Rail/Tube
Power Consumption
200mW
Radiation Hardening
No
Ratings
IP67
Reach SVHC Compliant
No
Relay Type
General Purpose
Release Time
5ms
RoHS Compliant
Yes
Series
DS
Switching Current
2A
Termination
PC Pin
Throw Configuration
DPDT
Voltage Rating (AC)
250V
DC Rated Voltage
220V
Weight
4g
Width
9.9mm
Compliance
RoHS
Compliant
Datasheet
Panasonic DS2E-S-DC6V Datasheet
Download the complete datasheet for Panasonic DS2E-S-DC6V to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

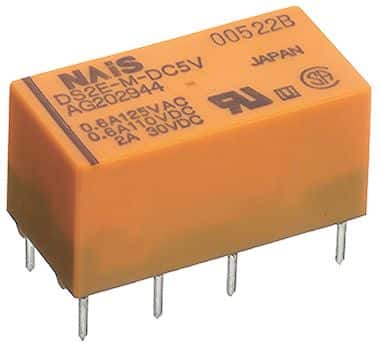

Product Images
