General purpose electromechanical relay featuring a DPDT (2 Form C) contact configuration. Coil operates at 12VDC with 180mW power consumption and 15mA current. Contact ratings include 2A switching current and 3A maximum current, with voltage ratings of 250VAC and 220VDC. This through-hole mount relay offers a latching dual-coil design and is RoHS compliant.
PackageDIP
Resistance800R
Current Rating2A
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Panasonic DS2E-SL2-DC12V technical specifications.
General
| Approvals | UL, CSA |
| Package/Case | DIP |
| Coil Current | 15mA |
| Coil Power | 180mW |
| Coil Resistance | 800R |
| Coil Type | Latching, Dual Coil |
| Coil Voltage (DC) | 12V |
| Contact Current Rating | 3A |
| Contact Material | Gold, Silver |
| Current Rating | 2A |
| Depth | 9.9mm |
| Height | 9.9mm |
| Lead Free | Lead Free |
| Length | 20mm |
| Life (Hours) | 10000000Hour |
| Max Current Rating | 3A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 220V |
| Mount | Through Hole, PCB |
| Operate Time | 10ms |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Consumption | 180mW |
| Radiation Hardening | No |
| Ratings | IP67 |
| Reach SVHC Compliant | No |
| Relay Type | General Purpose |
| Release Time | 5ms |
| Resistance | 800R |
| RoHS Compliant | Yes |
| Series | DS |
| Switching Current | 2A |
| Termination | PC Pin |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 220V |
| Weight | 4g |
| Width | 20mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic DS2E-SL2-DC12V Datasheet
Download the complete datasheet for Panasonic DS2E-SL2-DC12V to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

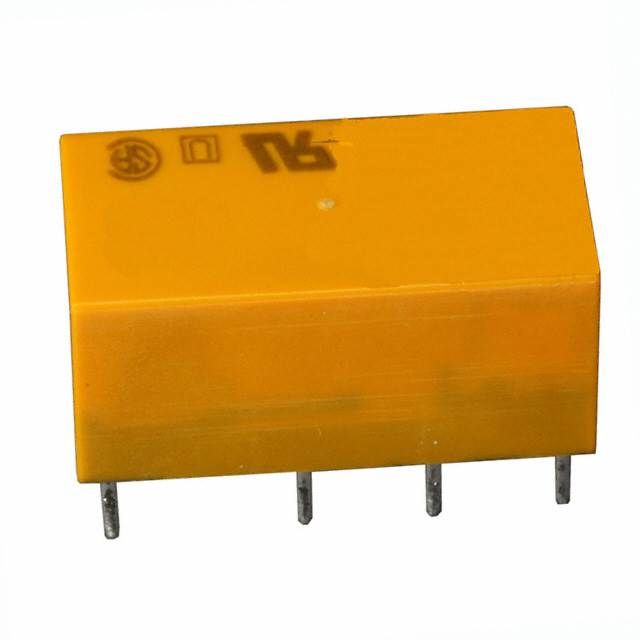

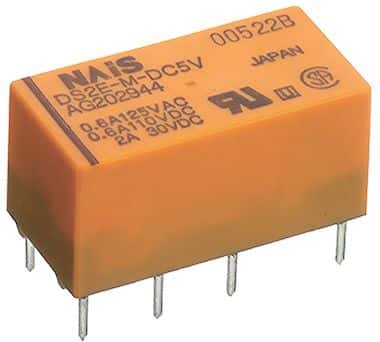

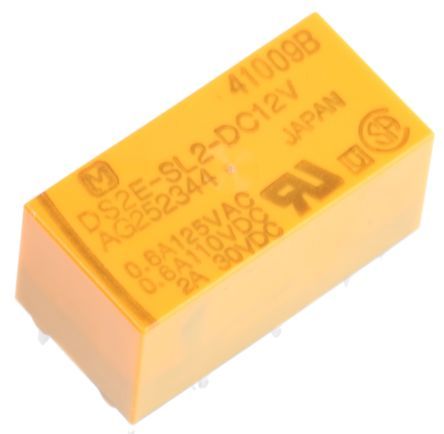

Product Images
