DPDT latching power/signal relay with a 5VDC coil voltage and 36mA coil current. Features a 180mW coil power consumption and 139 Ohm coil resistance. Contact ratings include 2A switching current and 3A maximum current rating, with gold/silver contact material and gold plating. Operates within a -40°C to 70°C temperature range and offers 10ms operate time and 5ms release time. Through-hole mounting with a 5.08mm lead pitch and 7.62mm row spacing. RoHS compliant and IP67 rated.
PackageDIP
Current Rating2A
MountingThrough Hole, PCB
Power180mW
Quick Jump:
Technical Specifications
Panasonic DS2E-SL2-DC5V technical specifications.
General
| Approvals | UL, CSA |
| Package/Case | DIP |
| Coil Current | 36mA |
| Coil Power | 180mW |
| Coil Resistance | 139R |
| Coil Type | Latching, Dual Coil |
| Coil Voltage (DC) | 5V |
| Contact Current Rating | 3A |
| Contact Material | Gold, Silver |
| Contact Plating | Gold |
| Current Rating | 2A |
| Depth | 9.9mm |
| Height | 9.9mm |
| Lead Free | Lead Free |
| Lead Pitch | 5.08mm |
| Length | 20mm |
| Life (Hours) | 10000000Hour |
| Max Current Rating | 3A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 220V |
| Mount | Through Hole, PCB |
| Number of Poles | 2 |
| Operate Time | 10ms |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Consumption | 180mW |
| Ratings | IP67 |
| Reach SVHC Compliant | No |
| Relay Type | General Purpose |
| Release Time | 5ms |
| RoHS Compliant | Yes |
| Row Spacing | 7.62mm |
| Series | DS |
| Switching Current | 2A |
| Termination | PC Pin |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 30V |
| Weight | 4g |
| Width | 20mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic DS2E-SL2-DC5V Datasheet
Download the complete datasheet for Panasonic DS2E-SL2-DC5V to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

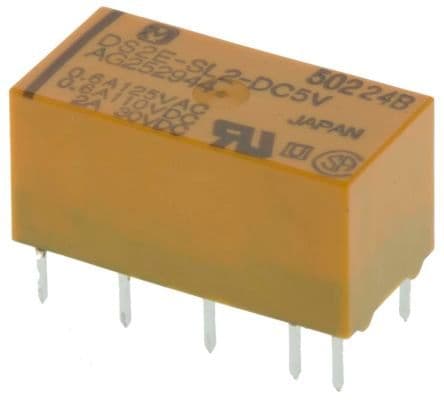

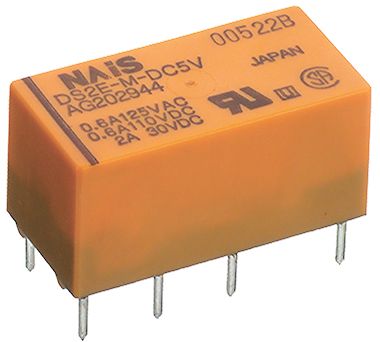

Product Images
