DPDT electromechanical signal relay with a 12V DC coil voltage and 2A contact current rating. Features gold/silver contact material, 250V AC / 220V DC voltage ratings, and a 200mW coil power. Through-hole mounting with PC pin termination, operating temperature range of -40°C to 70°C, and IP67 rating. RoHS compliant with UL and CSA approvals.
PackageDIP
Current Rating2A
MountingThrough Hole, PCB
Power200mW
Quick Jump:
Technical Specifications
Panasonic DS2Y-S-DC12V technical specifications.
General
| Approvals | UL, CSA |
| Package/Case | DIP |
| Coil Current | 16.7mA |
| Coil Power | 200mW |
| Coil Resistance | 720R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 12V |
| Contact Current Rating | 2A |
| Contact Material | Gold, Silver |
| Current Rating | 2A |
| Depth | 9.9mm |
| Height | 9.9mm |
| Lead Free | Lead Free |
| Length | 20mm |
| Life (Hours) | 1Hour |
| Max Current Rating | 2A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 220V |
| Mount | Through Hole, PCB |
| Operate Time | 4ms |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Consumption | 200mW |
| Radiation Hardening | No |
| Ratings | IP67 |
| Reach SVHC Compliant | Unknown |
| Relay Type | General Purpose |
| Release Time | 3ms |
| RoHS Compliant | Yes |
| Series | DS2Y |
| Switching Current | 2A |
| Termination | PC Pin |
| Throw Configuration | DPDT |
| Type | Electromechanical |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 220V |
| Weight | 4g |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic DS2Y-S-DC12V Datasheet
Download the complete datasheet for Panasonic DS2Y-S-DC12V to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

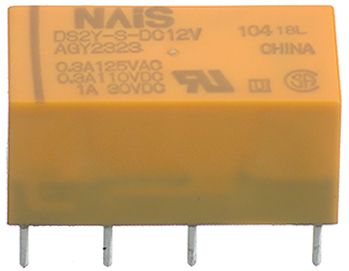

Product Images
