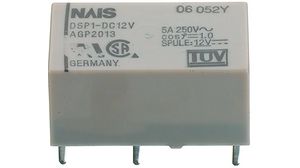

DPST, latching electromechanical relay with a 6VDC coil voltage and 50mA coil current. Features a 5A contact rating at 125VDC and 120 Ohm coil resistance, consuming 300mW. Through-hole mounting with PC pin termination, suitable for general-purpose applications. Operates within a -40°C to 65°C temperature range, with 10ms operate and 5ms release times.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic DSP1-L2-DC6V-F datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic DSP1-L2-DC6V-F technical specifications.
| Package/Case | DIP |
| Coil Current | 50mA |
| Coil Resistance | 120R |
| Coil Type | Latching, Dual Coil |
| Coil Voltage (DC) | 6V |
| Contact Current Rating | 5A |
| Contact Material | Tin, Silver, Gold |
| Height | 10.5mm |
| Lead Free | Lead Free |
| Max Current Rating | 5A |
| Max Operating Temperature | 65°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 30V |
| Mount | Through Hole |
| Operate Time | 10ms |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Consumption | 300mW |
| Reach SVHC Compliant | No |
| Relay Type | General Purpose |
| Release Time | 5ms |
| RoHS Compliant | Yes |
| Series | DSP |
| Termination | PC Pin |
| Throw Configuration | DPST, SPST |
| Weight | 4.5g |
| Width | 11mm |
| RoHS | Compliant |
Download the complete datasheet for Panasonic DSP1-L2-DC6V-F to view detailed technical specifications.
