Radial aluminum electrolytic capacitor, 470µF capacitance with 20% tolerance, rated for 6.3V DC. Features a 380mA ripple current and a 2000-hour life at 85°C. Through-hole mounting with a 5mm lead pitch and 0.5mm lead diameter. RoHS compliant and lead-free.
PackageRadial
Capacitance470uF
Voltage Rating6.3V
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Panasonic ECA-0JM471B technical specifications.
General
| Capacitance | 470uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 6.3mm |
| Dissipation Factor | 0.28% |
| Height | 11.2mm |
| Lead Diameter | 0.5mm |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Lead/Base Style | Straight |
| Length | 11.2mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 2000 |
| Packaging | Ammo Pack |
| Radiation Hardening | No |
| Ripple Current | 380mA |
| RoHS Compliant | Yes |
| Series | M |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 6.3V |
| DC Rated Voltage | 6.3V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ECA-0JM471B Datasheet
Download the complete datasheet for Panasonic ECA-0JM471B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

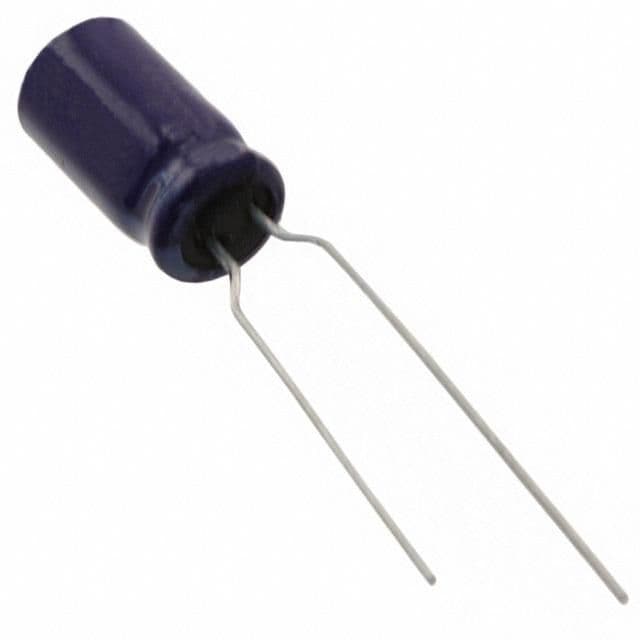

Product Images
