Aluminum electrolytic capacitor with 15,000µF capacitance and 10V DC rated voltage, featuring 20% tolerance. This radial component offers a 7.5mm lead pitch, 1.85A ripple current capability, and a 2000-hour life at 85°C. Designed for through-hole PCB mounting, it operates from -40°C to 85°C with a leakage current of 4µA.
PackageRadial
Voltage10V
Capacitance15mF
Voltage Rating10V
Quick Jump:
Technical Specifications
Panasonic ECA-1AM153 technical specifications.
General
| Capacitance | 15mF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 18mm |
| Dissipation Factor | 0.52% |
| Height | 35.5mm |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Pitch | 7.5mm |
| Lead/Base Style | Straight |
| Leakage Current | 4uA |
| Length | 35.5mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 50 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 1.85A |
| Ripple Current (AC) | 1.85A |
| RoHS Compliant | Yes |
| Series | M |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 10V |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ECA-1AM153 Datasheet
Download the complete datasheet for Panasonic ECA-1AM153 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

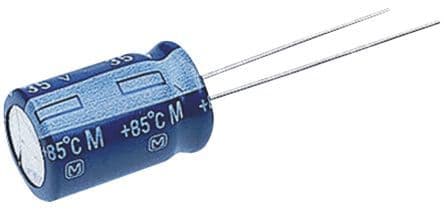

Product Images
