Radial aluminum electrolytic capacitor, 100µF capacitance, 16V DC rated voltage, 20% tolerance. Features a 2.5mm lead pitch, 0.5mm lead diameter, and 5mm diameter. Operates within a -40°C to 85°C temperature range, with a 2000-hour life rating and 180mA ripple current. Through-hole mounting for PCB applications, RoHS compliant.
PackageRadial
Voltage16V
Capacitance100uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Panasonic ECA-1CM101I technical specifications.
General
| Capacitance | 100uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 5mm |
| Dissipation Factor | 0.2% |
| Height | 11mm |
| Lead Diameter | 0.5mm |
| Lead Free | Lead Free |
| Lead Pitch | 2.5mm |
| Lead/Base Style | Straight |
| Leakage Current | 3mA |
| Length | 11mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 2000 |
| Packaging | Ammo Pack |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Ripple Current | 180mA |
| RoHS Compliant | Yes |
| Series | M |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 16V |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ECA-1CM101I Datasheet
Download the complete datasheet for Panasonic ECA-1CM101I to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

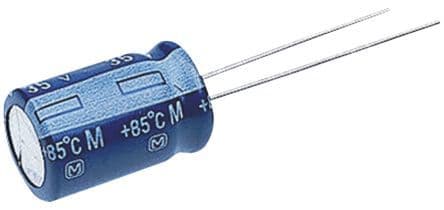

Product Images
