Radial aluminum electrolytic capacitor, 220µF capacitance, 16V DC rated voltage, and 20% tolerance. Features a 280mA ripple current, 3mA leakage current, and a dissipation factor of 0.2%. Operates within a temperature range of -40°C to 85°C with a rated life of 2000 hours. Through-hole mounting with a 2.5mm lead pitch and 0.5mm lead diameter. RoHS compliant.
PackageRadial
Voltage16V
Capacitance220uF
Voltage Rating16V
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Panasonic ECA-1CM221I datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Panasonic ECA-1CM221I technical specifications.
General
| Capacitance | 220uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 6.3mm |
| Dissipation Factor | 0.2% |
| Height | 11.2mm |
| Lead Diameter | 0.5mm |
| Lead Free | Lead Free |
| Lead Pitch | 2.5mm |
| Lead/Base Style | Straight |
| Leakage Current | 3mA |
| Length | 11.2mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 2000 |
| Packaging | Ammo Pack |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Ripple Current | 280mA |
| RoHS Compliant | Yes |
| Series | M |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 16V |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ECA-1CM221I Datasheet
Download the complete datasheet for Panasonic ECA-1CM221I to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

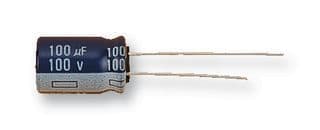

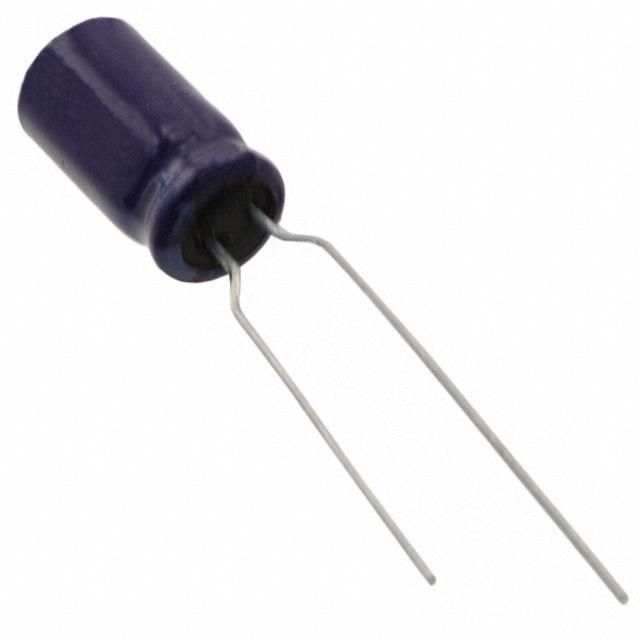

Product Images
