Panasonic
ECA-1CM470I
47uF Radial Aluminum Electrolytic Capacitor, 16V, 20% Tolerance, Through Hole Mount
The Panasonic ECA-1CM470I is a 47uF aluminum electrolytic capacitor with a 16V voltage rating and 20% tolerance. It has a radial package with a 5mm diameter and 11mm height, and is designed for through hole mounting. The capacitor has a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. It is RoHS compliant and available in quantities of 2000 per reel.
PackageRadial
Capacitance47uF
Voltage Rating16V
MountingThrough Hole
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Panasonic ECA-1CM470I datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Panasonic ECA-1CM470I technical specifications.
General
| Capacitance | 47uF |
| Package/Case | Radial |
| Diameter | 5mm |
| Height | 11mm |
| Height - Seated (Max) | 0.472inch |
| Lead Pitch | 2.5mm |
| Lead/Base Style | Straight |
| Length | 11mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ripple Current | 130mA |
| RoHS Compliant | Yes |
| Series | M |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ECA-1CM470I Datasheet
Download the complete datasheet for Panasonic ECA-1CM470I to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

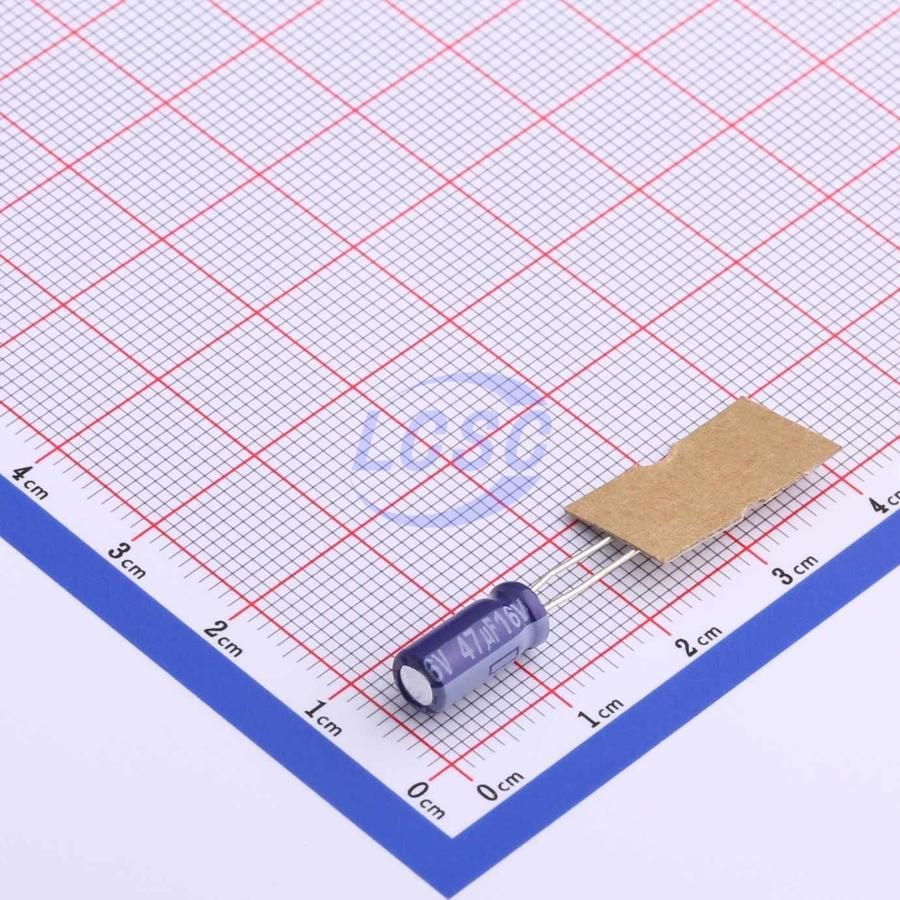

Product Images
