33µF radial aluminum electrolytic capacitor with a 20% tolerance and a 25V DC voltage rating. Features a 5mm diameter, 11mm height, and 2mm lead pitch, designed for through-hole PCB mounting. Offers a ripple current of 110mA, leakage current of 3µA, and a rated life of 2000 hours at 85°C. Operating temperature range is -40°C to 85°C.
PackageRadial
Voltage25V
Capacitance33uF
Voltage Rating25V
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Panasonic ECA-1EM330 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Panasonic ECA-1EM330 technical specifications.
General
| Capacitance | 33uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 5mm |
| Height | 11mm |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 2mm |
| Lead/Base Style | Straight |
| Leakage Current | 3uA |
| Length | 11mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Ripple Current | 110mA |
| Series | M |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 25V |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ECA-1EM330 Datasheet
Download the complete datasheet for Panasonic ECA-1EM330 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

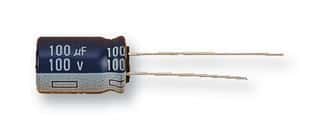

Product Images
