Aluminum electrolytic capacitor with 330µF capacitance and 50V DC rated voltage. Features a 20% tolerance, 410mA ripple current, and a 2000-hour life at 105°C. Radial package with 5mm lead pitch, 10mm diameter, and 16mm height. Through-hole mounting for PCB applications, RoHS compliant, and lead-free.
PackageRadial
Voltage50V
Storage16mm
Capacitance330uF
Quick Jump:
Technical Specifications
Panasonic ECA-1HHG331 technical specifications.
General
Capacitance
330uF
Package/Case
Radial
Construction
RADIAL
Diameter
10mm
Dielectric Material
Aluminium
Dissipation Factor
0.12%
Height
16mm
Lead Diameter
0.6mm
Lead Free
Lead Free
Lead Pitch
5mm
Lead/Base Style
Straight
Leakage Current
3uA
Length
16mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
410mA
Ripple Current (AC)
410mA
RoHS Compliant
Yes
Series
NHG
Size
16mm
Termination
Radial
Tolerance
20%
Voltage
50V
Voltage Rating
50V
DC Rated Voltage
50V
Compliance
RoHS
Compliant
Datasheet
Panasonic ECA-1HHG331 Datasheet
Download the complete datasheet for Panasonic ECA-1HHG331 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

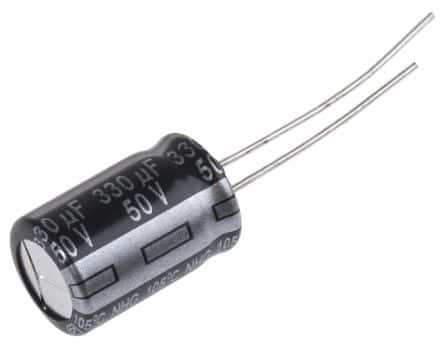

Product Images
