Radial aluminum electrolytic capacitor with 470µF capacitance and 50V DC rated voltage. Features a 20% tolerance, 530mA ripple current, and a 2000-hour life at 105°C. Dimensions include a 10mm diameter and 20mm height, with a 5mm lead pitch and 0.6mm lead diameter. Designed for through-hole PCB mounting, this component is RoHS compliant and supplied in an ammo pack.
PackageRadial
Voltage50V
Capacitance470uF
Voltage Rating50V
Quick Jump:
Technical Specifications
Panasonic ECA-1HHG471B technical specifications.
General
| Capacitance | 470uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 10mm |
| Dissipation Factor | 12% |
| Height | 20mm |
| Height - Seated (Max) | 0.866inch |
| Lead Diameter | 0.6mm |
| Lead Pitch | 5mm |
| Lead/Base Style | Straight |
| Leakage Current | 3uA |
| Length | 20mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, PCB |
| Package Quantity | 500 |
| Packaging | Ammo Pack |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Ripple Current | 530mA |
| RoHS Compliant | Yes |
| Series | NHG |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ECA-1HHG471B Datasheet
Download the complete datasheet for Panasonic ECA-1HHG471B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

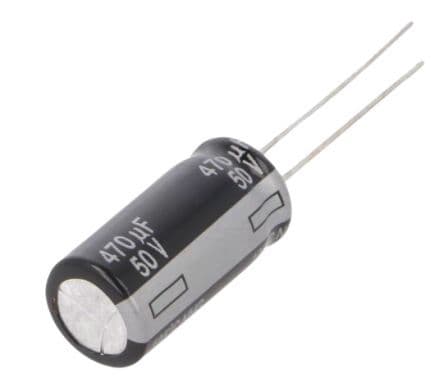

Product Images
