Aluminum electrolytic capacitor with 4.7µF capacitance and 50V voltage rating. Features 20% tolerance, 105°C maximum operating temperature, and 1000-hour life. Radial package measures 5mm diameter by 11mm height, with 2mm lead pitch and 0.5mm lead diameter. Offers 26mA ripple current and 3µA leakage current. RoHS compliant for through-hole PCB mounting.
PackageRadial
Voltage50V
Storage11mm
Capacitance4.7uF
Quick Jump:
Technical Specifications
Panasonic ECA-1HHG4R7 technical specifications.
General
Capacitance
4.7uF
Package/Case
Radial
Construction
RADIAL
Diameter
5mm
Dielectric Material
Aluminium
Dissipation Factor
0.12%
Height
11mm
Lead Diameter
0.5mm
Lead Free
Lead Free
Lead Pitch
2mm
Lead/Base Style
Straight
Leakage Current
3uA
Length
11mm
Life (Hours)
1000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
26mA
Ripple Current (AC)
26mA
RoHS Compliant
Yes
Series
NHG
Size
11mm
Termination
Radial
Tolerance
20%
Voltage
50V
Voltage Rating
50V
Voltage Rating (AC)
50V
DC Rated Voltage
50V
Compliance
RoHS
Compliant
Datasheet
Panasonic ECA-1HHG4R7 Datasheet
Download the complete datasheet for Panasonic ECA-1HHG4R7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

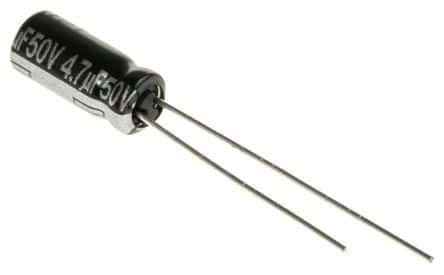

Product Images
