Aluminum electrolytic capacitor, 1µF capacitance, 50V DC rated voltage, 20% tolerance. Features a 5mm radial lead pitch, 0.5mm lead diameter, and a 5mm diameter by 11mm height radial package. Operates from -40°C to 85°C with a 2000-hour life expectancy at rated conditions. Includes 10mA ripple current capability, 3µA leakage current, and a dissipation factor of 0.12%. RoHS compliant and lead-free.
PackageRadial
Capacitance1uF
Voltage Rating50V
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Panasonic ECA-1HM010B technical specifications.
General
| Capacitance | 1uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 5mm |
| Dissipation Factor | 0.12% |
| Height | 11mm |
| Lead Diameter | 0.5mm |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Lead/Base Style | Straight |
| Leakage Current | 3uA |
| Length | 11mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 10mA |
| RoHS Compliant | Yes |
| Series | M |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ECA-1HM010B Datasheet
Download the complete datasheet for Panasonic ECA-1HM010B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

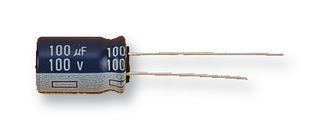

Product Images
