Aluminum electrolytic capacitor with 47uF capacitance and 20% tolerance. Features a 50V DC rated voltage, 130mA ripple current, and 3mA leakage current. Designed for through-hole PCB mounting with a radial package, 2.5mm lead pitch, and 0.5mm lead diameter. Operating temperature range from -40°C to 85°C with a 2000-hour life rating.
PackageRadial
Voltage50V
Capacitance47uF
Voltage Rating50V
Quick Jump:
Technical Specifications
Panasonic ECA-1HM470I technical specifications.
General
| Capacitance | 47uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 6.3mm |
| Dissipation Factor | 0.12% |
| Height | 11.2mm |
| Lead Diameter | 0.5mm |
| Lead Free | Lead Free |
| Lead Pitch | 2.5mm |
| Lead/Base Style | Straight |
| Leakage Current | 3mA |
| Length | 11.2mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 2000 |
| Packaging | Ammo Pack |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Ripple Current | 130mA |
| RoHS Compliant | Yes |
| Series | M |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ECA-1HM470I Datasheet
Download the complete datasheet for Panasonic ECA-1HM470I to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

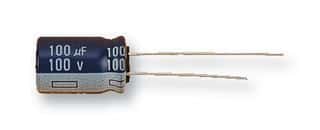

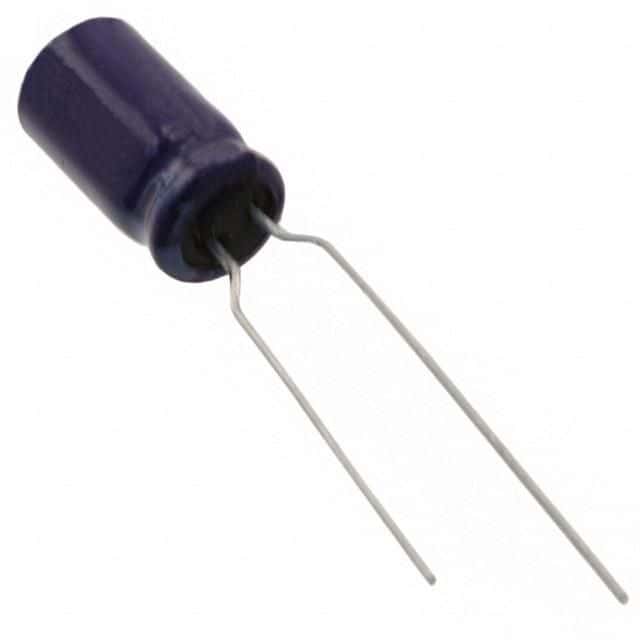

Product Images
