10µF radial aluminum electrolytic capacitor with 35V DC rated voltage and 20% tolerance. Features a 2mm lead pitch, 5mm diameter, and 11mm height, suitable for through-hole PCB mounting. Offers a leakage current of 3µA, ripple current of 60mA, and an operating temperature range of -40°C to 85°C. This RoHS compliant component provides 2000 hours of life.
PackageRadial
Voltage35V
Capacitance10uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Panasonic ECA-1VM100 technical specifications.
General
| Capacitance | 10uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 5mm |
| Dielectric Material | Aluminium |
| Height | 11mm |
| Lead Free | Lead Free |
| Lead Pitch | 2mm |
| Lead/Base Style | Straight |
| Leakage Current | 3uA |
| Length | 11mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 60mA |
| RoHS Compliant | Yes |
| Series | M |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 35V |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ECA-1VM100 Datasheet
Download the complete datasheet for Panasonic ECA-1VM100 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

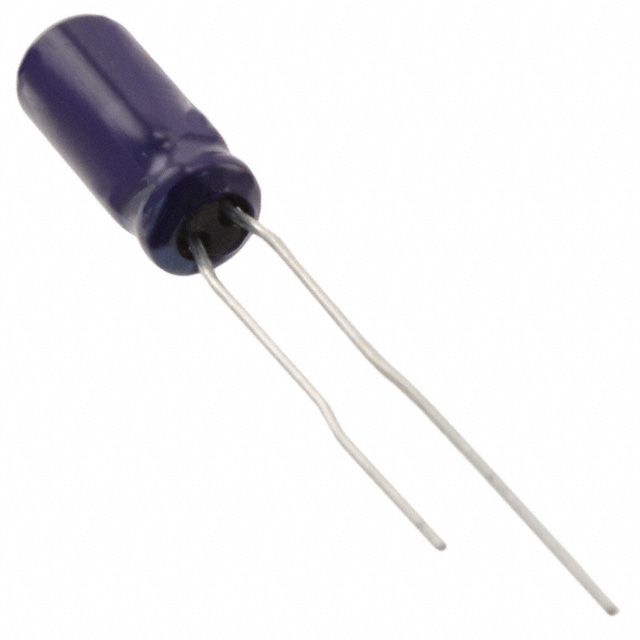

Product Images
