Radial aluminum electrolytic capacitor with 22µF capacitance and 20% tolerance. Features a 35V DC rated voltage and 95mA ripple current. Operating temperature range from -40°C to 85°C with a 2000-hour life rating. Through-hole mounting with a 2mm lead pitch and 5mm diameter. RoHS compliant.
PackageRadial
Voltage35V
Capacitance22uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Panasonic ECA-1VM220 technical specifications.
General
| Capacitance | 22uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 5mm |
| Dielectric Material | Aluminium |
| Height | 11mm |
| Lead Free | Lead Free |
| Lead Pitch | 2mm |
| Lead/Base Style | Straight |
| Leakage Current | 3uA |
| Length | 11mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 95mA |
| RoHS Compliant | Yes |
| Series | M |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 35V |
| Voltage Rating | 35V |
| Voltage Rating (AC) | 35V |
| DC Rated Voltage | 35V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ECA-1VM220 Datasheet
Download the complete datasheet for Panasonic ECA-1VM220 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

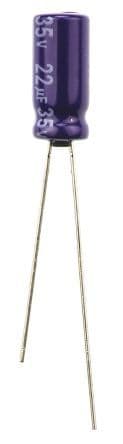

Product Images
