Radial aluminum electrolytic capacitor, 2.2µF capacitance, 100V DC rated voltage, 20% tolerance. Features a 5mm diameter, 11mm height, and 2.5mm lead pitch. Operates from -40°C to 85°C with a 2000-hour life at rated conditions. Ripple current capability of 30mA. Through-hole mounting, RoHS compliant.
PackageRadial
Capacitance2.2uF
Voltage Rating100V
MountingThrough Hole
Quick Jump:
Technical Specifications
Panasonic ECA-2AM2R2I technical specifications.
General
| Capacitance | 2.2uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 5mm |
| Height | 11mm |
| Height - Seated (Max) | 0.472inch |
| Lead Diameter | 0.5mm |
| Lead Pitch | 2.5mm |
| Lead/Base Style | Straight |
| Length | 11mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ripple Current | 30mA |
| RoHS Compliant | Yes |
| Series | M |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 100V |
| DC Rated Voltage | 100V |
| Width | 5mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ECA-2AM2R2I Datasheet
Download the complete datasheet for Panasonic ECA-2AM2R2I to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

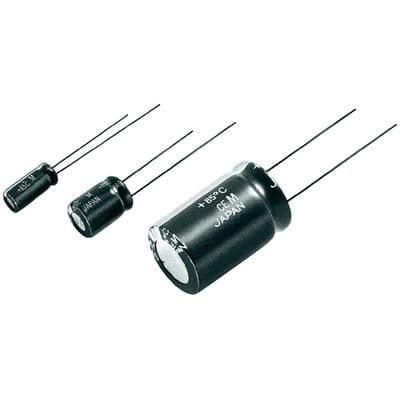

Product Images
