Radial aluminum electrolytic capacitor with 470µF capacitance and 100V DC rated voltage. Features a 20% tolerance, 2000-hour life at 85°C, and 900mA ripple current. Through-hole mounting with a 7.5mm lead pitch and 0.8mm lead diameter. Dimensions are 16mm diameter and 25mm height. RoHS compliant and lead-free.
Voltage100V
Storage25mm
Capacitance470uF
Voltage Rating100V
Quick Jump:
Technical Specifications
Panasonic ECA-2AM471 technical specifications.
General
| Capacitance | 470uF |
| Construction | RADIAL |
| Diameter | 16mm |
| Dielectric Material | Aluminium |
| Height | 25mm |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Pitch | 7.5mm |
| Leakage Current | 3uA |
| Length | 25mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Ripple Current | 900mA |
| Ripple Current (AC) | 900mA |
| RoHS Compliant | Yes |
| Series | M |
| Size | 25mm |
| Termination | Through Hole |
| Tolerance | 20% |
| Voltage | 100V |
| Voltage Rating | 100V |
| Voltage Rating (AC) | 100V |
| DC Rated Voltage | 100V |
| Width | 16mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ECA-2AM471 Datasheet
Download the complete datasheet for Panasonic ECA-2AM471 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

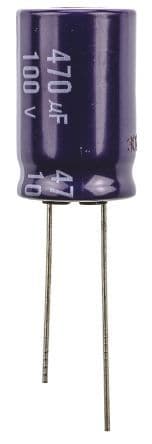

Product Images
