Radial aluminum electrolytic capacitor, 22µF capacitance, 200V voltage rating, and 20% tolerance. Features a 10mm diameter, 20mm height, and 5mm lead pitch. Operates from -25°C to 105°C with a 2000-hour life at rated conditions. Includes 140mA ripple current capability and through-hole mounting.
PackageRadial
Voltage200V
Capacitance22uF
Voltage Rating200V
Quick Jump:
Technical Specifications
Panasonic ECA-2DHG220 technical specifications.
General
| Capacitance | 22uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 10mm |
| Dielectric Material | Aluminium |
| Height | 20mm |
| Height - Seated (Max) | 0.866inch |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Lead/Base Style | Straight |
| Length | 20mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 140mA |
| Ripple Current (AC) | 140mA |
| RoHS Compliant | Yes |
| Series | NHG |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 200V |
| Voltage Rating | 200V |
| DC Rated Voltage | 200V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ECA-2DHG220 Datasheet
Download the complete datasheet for Panasonic ECA-2DHG220 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

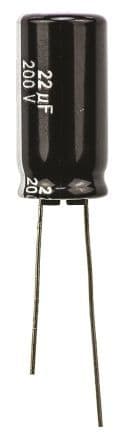

Product Images
