Radial aluminum electrolytic capacitor with 3.3µF capacitance and 200V DC rating. Features 20% tolerance, 105°C maximum operating temperature, and 2000-hour life. This through-hole component has a 6.3mm diameter, 11.2mm height, and 2.5mm lead pitch. Includes 36mA ripple current capability and 49.6µA leakage current.
PackageRadial
Voltage200V
Capacitance3.3uF
Voltage Rating200V
Quick Jump:
Technical Specifications
Panasonic ECA-2DHG3R3 technical specifications.
General
Capacitance
3.3uF
Package/Case
Radial
Construction
RADIAL
Diameter
6.3mm
Dielectric Material
Aluminium
Dissipation Factor
15%
Height
11.2mm
Height - Seated (Max)
0.48inch
Lead Diameter
0.5mm
Lead Free
Lead Free
Lead Pitch
2.5mm
Lead/Base Style
Straight
Leakage Current
49.6uA
Length
11.2mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-25°C
Mount
Through Hole
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
36mA
Ripple Current (AC)
36mA
RoHS Compliant
Yes
Series
NHG
Termination
Radial
Tolerance
20%
Voltage
200V
Voltage Rating
200V
Voltage Rating (AC)
200V
DC Rated Voltage
200V
Compliance
RoHS
Compliant
Datasheet
Panasonic ECA-2DHG3R3 Datasheet
Download the complete datasheet for Panasonic ECA-2DHG3R3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

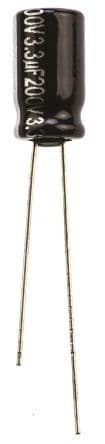

Product Images
