Radial aluminum electrolytic capacitor with 4.7µF capacitance and 20% tolerance. Features a 250V DC rated voltage and a maximum operating temperature of 85°C. This through-hole component has a leakage current of 11.75µA and a ripple current of 86mA. Constructed with a radial package, it offers a 3.5mm lead pitch and 0.6mm lead diameter.
PackageRadial
Voltage250V
Capacitance4.7uF
Voltage Rating250V
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Panasonic ECA-2EM4R7 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Panasonic ECA-2EM4R7 technical specifications.
General
| Capacitance | 4.7uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 8mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.18% |
| Height | 11.5mm |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 3.5mm |
| Lead/Base Style | Straight |
| Leakage Current | 11.75uA |
| Length | 11.5mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 86mA |
| Ripple Current (AC) | 86mA |
| RoHS Compliant | Yes |
| Series | M |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 250V |
| Voltage Rating | 250V |
| DC Rated Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ECA-2EM4R7 Datasheet
Download the complete datasheet for Panasonic ECA-2EM4R7 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

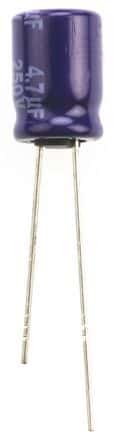

Product Images
