Radial aluminum electrolytic capacitor with 33µF capacitance and 400V voltage rating. Features 20% tolerance, 195mA ripple current, and a maximum operating temperature of 105°C. Dimensions are 16mm diameter by 25mm height, with a 7.5mm lead pitch. Designed for through-hole mounting, this RoHS compliant component offers 2000 hours of life.
PackageRadial
Voltage400V
Capacitance33uF
Voltage Rating400V
Quick Jump:
Technical Specifications
Panasonic ECA-2GHG330 technical specifications.
General
Capacitance
33uF
Package/Case
Radial
Construction
RADIAL
Diameter
16mm
Dielectric Material
Aluminium
Dissipation Factor
24%
Height
25mm
Height - Seated (Max)
1.063inch
Lead Diameter
0.8mm
Lead Free
Lead Free
Lead Pitch
7.5mm
Lead/Base Style
Straight
Leakage Current
802uA
Length
25mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-25°C
Mount
Through Hole
Package Quantity
100
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
195mA
Ripple Current (AC)
195mA
RoHS Compliant
Yes
Series
NHG
Termination
Radial
Tolerance
20%
Voltage
400V
Voltage Rating
400V
Voltage Rating (AC)
400V
DC Rated Voltage
400V
Compliance
RoHS
Compliant
Datasheet
Panasonic ECA-2GHG330 Datasheet
Download the complete datasheet for Panasonic ECA-2GHG330 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

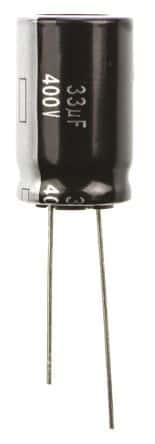

Product Images
