Radial aluminum electrolytic capacitor with 3.3µF capacitance and 400V voltage rating. Features a 10mm diameter, 12.5mm height, and 5mm lead pitch for through-hole mounting. Operates within a -25°C to 105°C temperature range, offering 2000 hours of life at rated conditions. Includes a 40mA ripple current capability and 89.2µA leakage current.
PackageRadial
Voltage400V
Capacitance3.3uF
Voltage Rating400V
Quick Jump:
Technical Specifications
Panasonic ECA-2GHG3R3 technical specifications.
General
Capacitance
3.3uF
Package/Case
Radial
Construction
RADIAL
Diameter
10mm
Dielectric Material
Aluminium
Dissipation Factor
24%
Height
12.5mm
Height - Seated (Max)
0.531inch
Lead Diameter
0.6mm
Lead Free
Lead Free
Lead Pitch
5mm
Lead/Base Style
Straight
Leakage Current
89.2uA
Length
12.5mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-25°C
Mount
Through Hole
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
40mA
Ripple Current (AC)
40mA
RoHS Compliant
Yes
Series
NHG
Termination
Radial
Tolerance
20%
Voltage
400V
Voltage Rating
400V
Voltage Rating (AC)
400V
DC Rated Voltage
400V
Compliance
RoHS
Compliant
Datasheet
Panasonic ECA-2GHG3R3 Datasheet
Download the complete datasheet for Panasonic ECA-2GHG3R3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

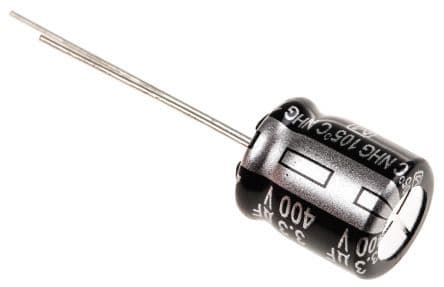

Product Images
