Radial aluminum electrolytic capacitor with 47µF capacitance and 350V voltage rating. Features 20% tolerance, 230mA ripple current, and a maximum operating temperature of 105°C. Dimensions are 16mm diameter and 25mm height, with a 7.5mm lead pitch. Designed for through-hole mounting and rated for 2000 hours of operation.
PackageRadial
Voltage350V
Capacitance47uF
Voltage Rating350V
Quick Jump:
Technical Specifications
Panasonic ECA-2VHG470 technical specifications.
General
| Capacitance | 47uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 16mm |
| Dielectric Material | Aluminium |
| Height | 25mm |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Length | 17mm |
| Lead Pitch | 7.5mm |
| Lead/Base Style | Straight |
| Leakage Current | 997uA |
| Length | 25mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 230mA |
| RoHS Compliant | Yes |
| Series | NHG |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 350V |
| Voltage Rating | 350V |
| DC Rated Voltage | 350V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ECA-2VHG470 Datasheet
Download the complete datasheet for Panasonic ECA-2VHG470 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

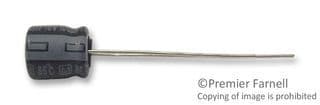

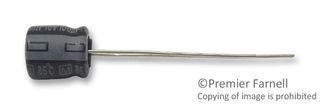

Product Images
