Aluminum electrolytic capacitor with 2.2µF capacitance and 350V DC rated voltage. Features 20% tolerance, 85°C maximum operating temperature, and 2000-hour life expectancy. Radial package with 3.5mm lead pitch, 8mm diameter, and 11.5mm height. Offers 55mA ripple current and 0.2% dissipation factor. RoHS compliant for through-hole mounting.
PackageRadial
Capacitance2.2uF
Voltage Rating350V
MountingThrough Hole
Quick Jump:
Technical Specifications
Panasonic ECA-2VM2R2 technical specifications.
General
| Capacitance | 2.2uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 8mm |
| Dissipation Factor | 0.2% |
| Height | 11.5mm |
| Height - Seated (Max) | 0.492inch |
| Lead Diameter | 0.6mm |
| Lead Pitch | 3.5mm |
| Lead/Base Style | Straight |
| Length | 11.5mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 55mA |
| Ripple Current (AC) | 50mA |
| RoHS Compliant | Yes |
| Series | M |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 350V |
| DC Rated Voltage | 350V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ECA-2VM2R2 Datasheet
Download the complete datasheet for Panasonic ECA-2VM2R2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

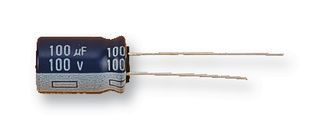

Product Images
