Panasonic
ECA-2WHG010
PANASONIC ELECTRONIC COMPONENTS ECA-2WHG010 Electrolytic Capacitor, NHG Series, 1 F, 20%, 450 V, 8 mm, Radial Leaded
PANASONIC ELECTRONIC COMPONENTS ECA-2WHG010 Electrolytic Capacitor, NHG Series, 1 F, 20%, 450 V, 8 mm, Radial Leaded
Voltage450V
Capacitance1uF
Voltage Rating450V
MountingThrough Hole
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Panasonic ECA-2WHG010 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Panasonic ECA-2WHG010 technical specifications.
General
| Capacitance | 1uF |
| Construction | RADIAL |
| Diameter | 8mm |
| Dielectric Material | Aluminium |
| Height | 11.5mm |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 3.5mm |
| Length | 11.5mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Ripple Current | 18mA |
| RoHS Compliant | Yes |
| Series | NHG |
| Termination | Through Hole |
| Tolerance | 20% |
| Voltage | 450V |
| Voltage Rating | 450V |
| Width | 8mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ECA-2WHG010 Datasheet
Download the complete datasheet for Panasonic ECA-2WHG010 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

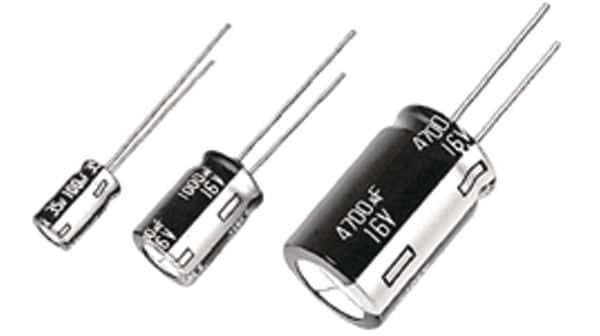

Product Images
