10µF radial aluminum electrolytic capacitor with 16V DC rated voltage and 20% tolerance. Features a 1.5mm lead pitch, 0.45mm lead diameter, and a 4mm diameter. Operates within a -40°C to 85°C temperature range, offering 1000 hours of life and 28mA ripple current. This through-hole, PCB mount component is RoHS compliant.
PackageRadial
Voltage16V
Storage5mm
Capacitance10uF
Quick Jump:
Technical Specifications
Panasonic ECE-A1CKS100 technical specifications.
General
| Capacitance | 10uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 4mm |
| Dissipation Factor | 16% |
| Height | 5mm |
| Height - Seated (Max) | 0.197inch |
| Lead Diameter | 0.45mm |
| Lead Free | Lead Free |
| Lead Pitch | 1.5mm |
| Leakage Current | 3uA |
| Length | 5mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 28mA |
| Ripple Current (AC) | 28mA |
| RoHS Compliant | Yes |
| Series | KS |
| Size | 5mm |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 16V |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ECE-A1CKS100 Datasheet
Download the complete datasheet for Panasonic ECE-A1CKS100 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

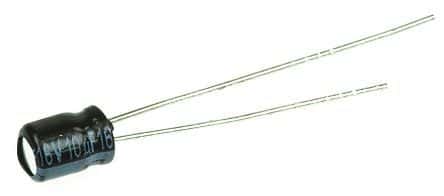

Product Images
