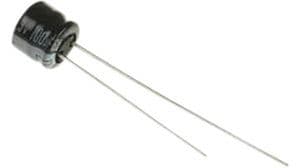

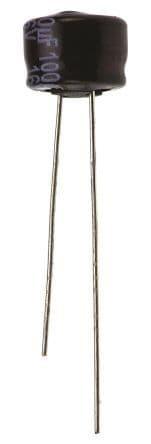

100µF, 16V radial aluminum electrolytic capacitor with 20% tolerance. Features a 91mA ripple current rating and 3µA leakage current. Constructed for through-hole PCB mounting with an 8mm diameter, 5mm height, 2.5mm lead pitch, and 0.45mm lead diameter. Operates across a -40°C to 85°C temperature range with a 1000-hour life rating. RoHS compliant.
PackageRadial
Voltage16V
Storage5mm
Capacitance100uF
Quick Jump:
Technical Specifications
Panasonic ECE-A1CKS101 technical specifications.
General
Capacitance
100uF
Package/Case
Radial
Construction
RADIAL
Diameter
8mm
Height
5mm
Lead Diameter
0.45mm
Lead Free
Lead Free
Lead Pitch
2.5mm
Leakage Current
3uA
Length
5mm
Life (Hours)
1000Hour
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole, PCB
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
91mA
Ripple Current (AC)
91mA
RoHS Compliant
Yes
Series
KS
Size
5mm
Termination
Radial
Tolerance
20%
Voltage
16V
Voltage Rating
16V
DC Rated Voltage
16V
Compliance
RoHS
Compliant
Datasheet
Panasonic ECE-A1CKS101 Datasheet
Download the complete datasheet for Panasonic ECE-A1CKS101 to view detailed technical specifications.
