Aluminum electrolytic capacitor with 33µF capacitance and 16V DC rated voltage. Features a 20% tolerance and 80mA ripple current. Radial package with 2mm lead pitch, 0.5mm lead diameter, 5mm diameter, and 11mm height. Operating temperature range from -40°C to 85°C, with 2000 hours life. Through-hole, PCB mount design.
PackageRadial
Voltage16V
Capacitance33uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Panasonic ECE-A1CN330U technical specifications.
General
| Capacitance | 33uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 5mm |
| Dissipation Factor | 0.2% |
| Height | 11mm |
| Lead Diameter | 0.5mm |
| Lead Free | Lead Free |
| Lead Pitch | 2mm |
| Leakage Current | 3mA |
| Length | 11mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 80mA |
| RoHS Compliant | Yes |
| Series | SU |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 16V |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ECE-A1CN330U Datasheet
Download the complete datasheet for Panasonic ECE-A1CN330U to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

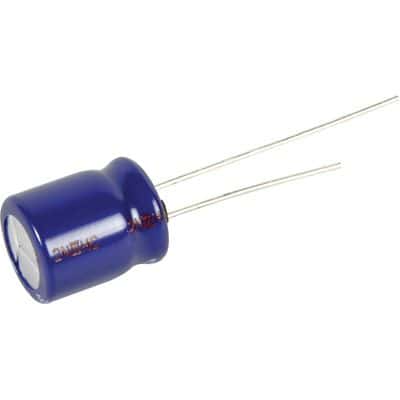

Product Images
