Aluminum electrolytic capacitor, 4.7µF capacitance, 25V DC rated voltage, 20% tolerance. Features a radial package with 1.5mm lead pitch, 4mm diameter, and 5mm height. Offers 1000 hours of life at 85°C, 22mA ripple current, and 3µA leakage current. Through-hole mounting for PCB applications.
PackageRadial
Voltage25V
Capacitance4.7uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Panasonic ECE-A1EKS4R7 technical specifications.
General
| Capacitance | 4.7uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 4mm |
| Dissipation Factor | 14% |
| Height | 5mm |
| Height - Seated (Max) | 0.197inch |
| Lead Diameter | 0.45mm |
| Lead Free | Lead Free |
| Lead Pitch | 1.5mm |
| Leakage Current | 3uA |
| Length | 5mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 22mA |
| RoHS Compliant | Yes |
| Series | KS |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 25V |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ECE-A1EKS4R7 Datasheet
Download the complete datasheet for Panasonic ECE-A1EKS4R7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

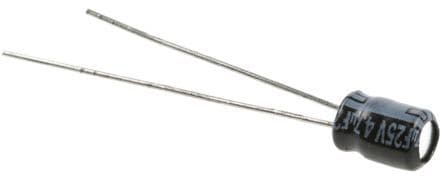

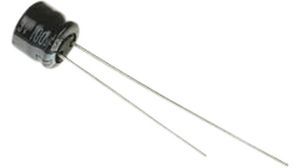

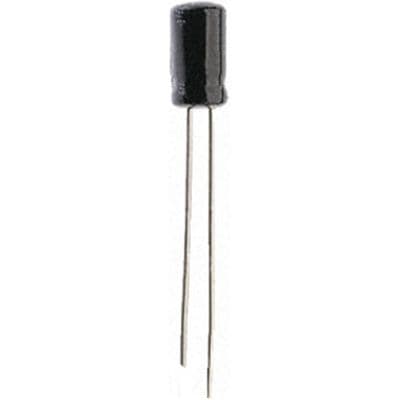

Product Images
