Radial leaded aluminum electrolytic capacitor with 1µF capacitance and 50V DC rated voltage. Features a 20% tolerance, 5mm diameter, and 2mm lead pitch. Offers a dissipation factor of 0.15%, leakage current of 4.5µA, and ripple current of 10mA. Operates within a temperature range of -40°C to 85°C with a lifespan of 2000 hours. RoHS compliant and lead-free.
PackageRadial
Voltage50V
Capacitance1uF
Voltage Rating50V
Quick Jump:
Technical Specifications
Panasonic ECE-A1HN010U technical specifications.
General
| Capacitance | 1uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 5mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.15% |
| Height | 11mm |
| Height - Seated (Max) | 0.433inch |
| Lead Diameter | 0.5mm |
| Lead Free | Lead Free |
| Lead Pitch | 2mm |
| Leakage Current | 4.5uA |
| Length | 11mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 10mA |
| Ripple Current (AC) | 10mA |
| RoHS Compliant | Yes |
| Series | SU |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ECE-A1HN010U Datasheet
Download the complete datasheet for Panasonic ECE-A1HN010U to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

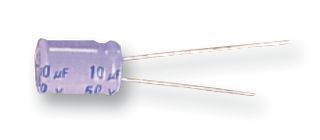

Product Images
